0.5T Silver Molten Aluminum Transfer Ladles Forklift Aluminum Heat Transfer

  • 1
  • 2
  • 3

Brand Name : Hydeb

Model Number : CLB-50

Certification : CE,ISO9001,ISO14001,IS45001, High-tech Enterprise, Intellectual Property, Patents

Place of Origin : China

MOQ : 1 Set

Price : $ 10000-$50000/set

Payment Terms : T/T

Supply Ability : 100 sets per year

Delivery Time : 30 working days

Packaging Details : Pallet or Wooden Case

Product Name : 500KG Capacity Forklift Type with Cover Siliver Molten Aluminum Transfer Ladles

Ladle Capacity : 500KG

Color : Siliver

Application : Transfer molten aluminum

Material : Iron Steel & Allied Castable Material

MOQ : 1 set

Natural temperature drop of molten aluminum : ≤18℃/h

Transfer method : Forklift

Contact Now

500KG Capacity Forklift Type with Cover Siliver Molten Aluminum Transfer Ladles

Aluminum Recyclling Transfer Ladles for Long Distance Transfer

1. Transfer Ladle Application

Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean. Our
transfer ladle having gear box for smooth tilting & ladle having refractory lining of non wetting castable,
Available capacity 100 to 3000 Kgs

2. Transfer Ladle Advantages

-- Smooth Tilting Mechanism

-- Less Skin temperature

-- Long Refractory life

-- Maintenance free

-- Easy Handling

3. Company Introduce

-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment

4. Transfer Ladle Characteristic

1 Increased metal quality
2 Lower energy costs
3 Improved process efficiency
4 Reduced downtime and replacement costs
5 Customized designs

5. Transfer Ladle Technical Parameters

Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤18℃/h For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature ≤50℃
Ladle capacity 500 KG The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight Around 1100KG



6. Modles

Type CLB-15 CLB-20 CLB-30 CLB-50 CLB-80 CLB-100 CLB-120 CLB-150
Capacity 150KG 200KG 300KG 500KG 800KG 1000KG 1200KG 1500KG

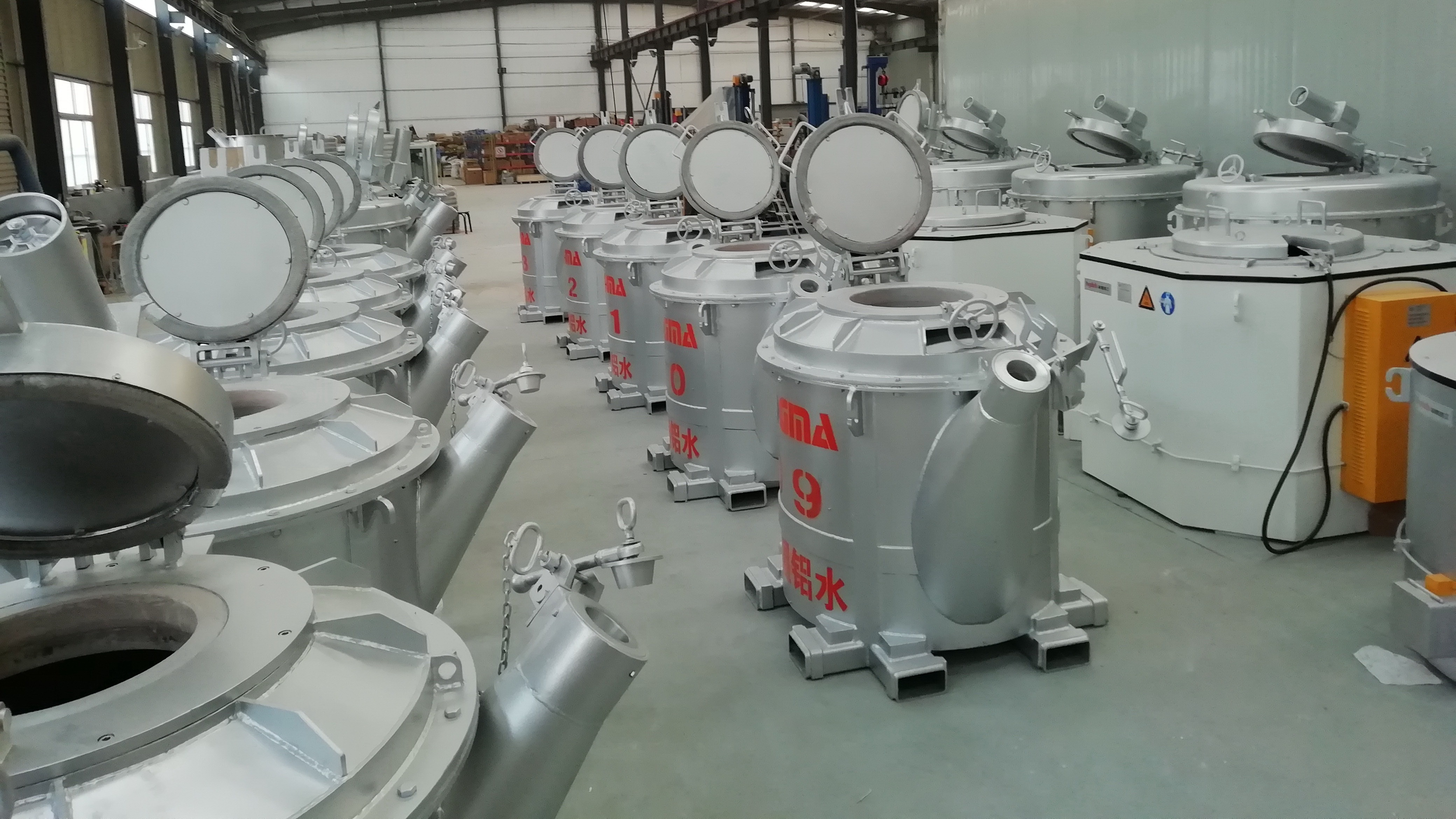

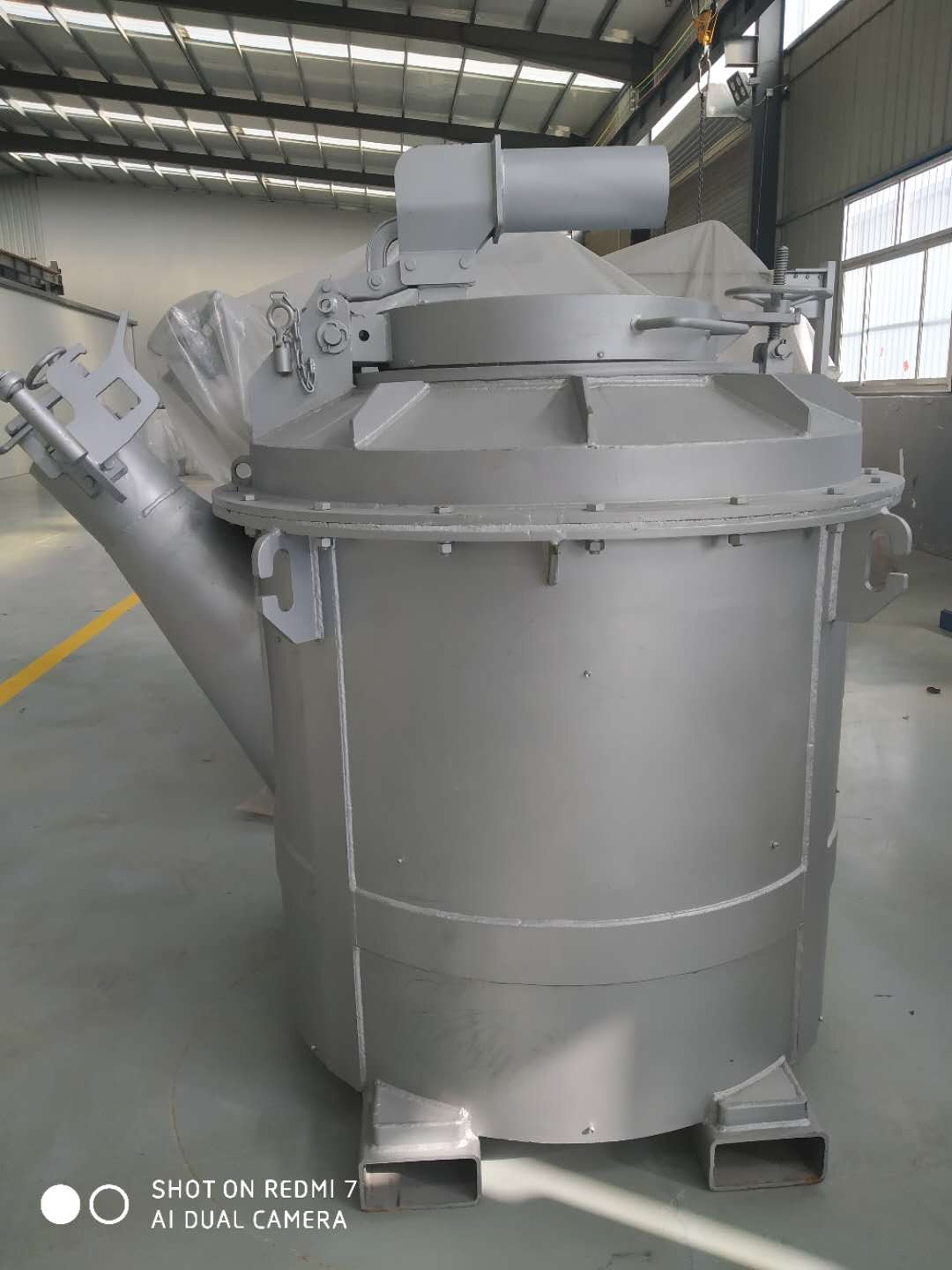

7. Reference Pictures


0.5T Silver Molten Aluminum Transfer Ladles Forklift Aluminum Heat Transfer
0.5T Silver Molten Aluminum Transfer Ladles Forklift Aluminum Heat Transfer

8. Our Strengths


0.5T Silver Molten Aluminum Transfer Ladles Forklift Aluminum Heat Transfer
