Molten Aluminia Ball Deep Bed Filtration Box DBFF-15

Molten Filter Unit Aluminia Ball Deep Bed Filtration Box DBFF-15

1. Equipment Usage

-- For mass producing of the same alloy products, especially for cans, foils, PS plates, etc.

-- For producing aviation Aluminium alloy, high-purity Aluminium capacitor foil, double zero Aluminium foil;

--The flow rate range is 5-100 tons/h. Non-standard design can be carried out according to the flow rate. Generally for 75 tons, 55 tons, 35 tons, 25 tons, 10 tons and other sequences.

2. Equipment Features

• According to the quality requirements of molten aluminium, the lining prefabricated parts of the filter box are made of corresponding high-quality castables. After high temperature pre-sintering, they have the characteristics of high strength, scour resistance, erosion resistance, no slag formation, and no sticking to Aluminium.
• There are multiple layers of thermal insulation materials with good thermal insulation between the steel structure and the lining prefabricated parts.
• The Deep Bed Filtration Box uses alumina balls and grit sintered by a special process as the filter medium.

3. Deep Bed Filtration Box Module

Molten Filter Unit

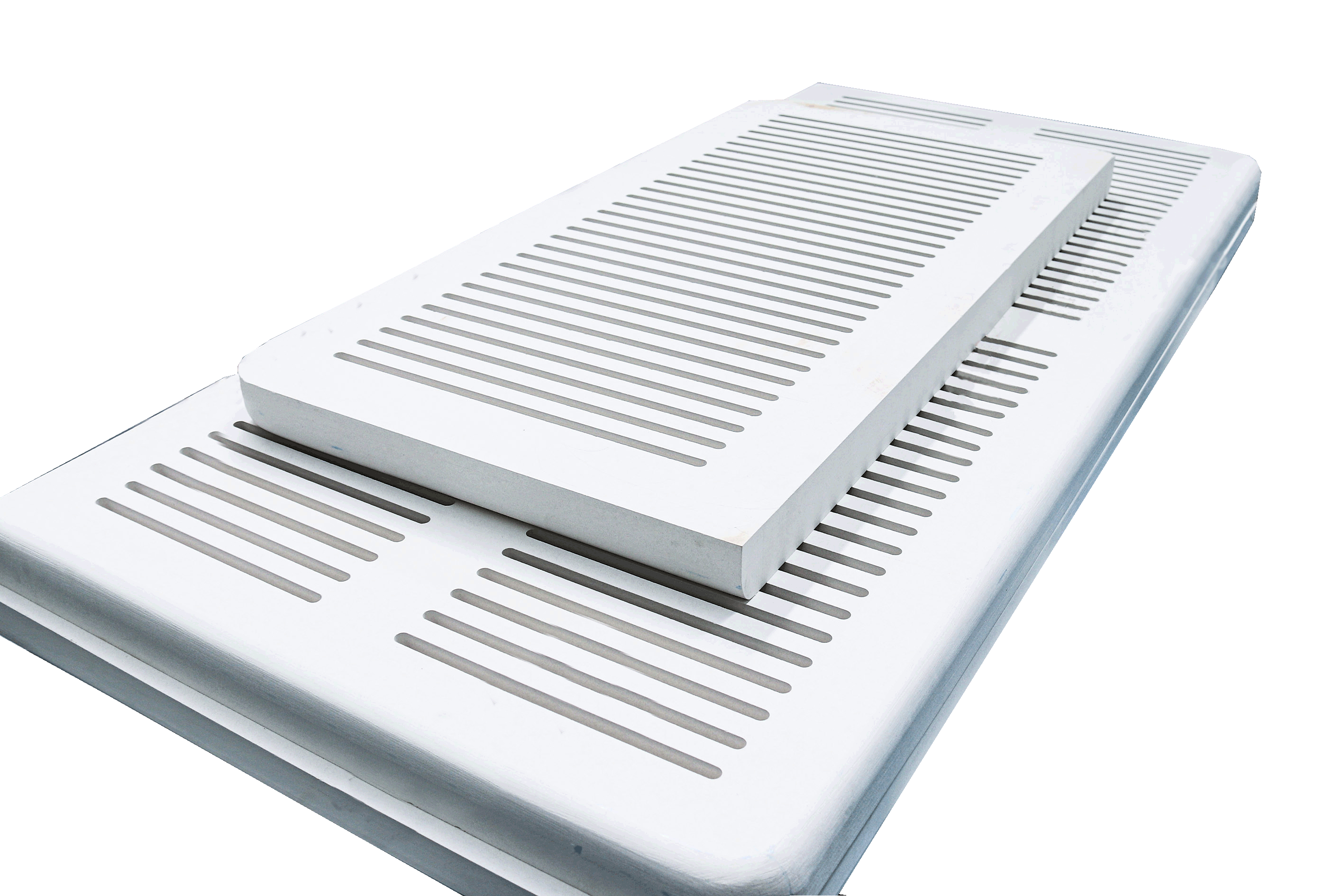

Alumina Ball Filter Unit

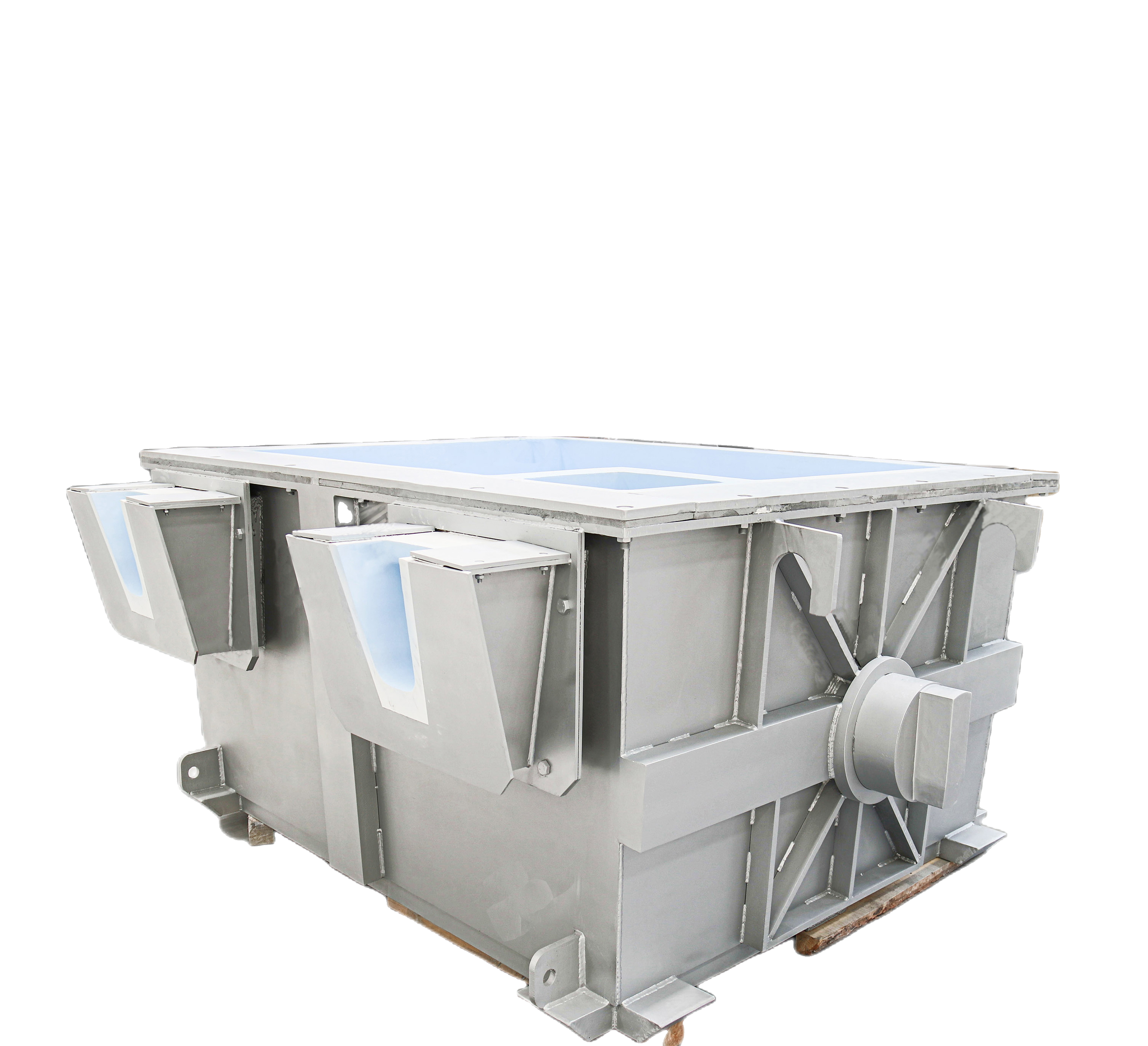

Aluminia Ball Deep Bed Filtration Box

Molten Aluminia Ball Deep Bed Filtration Box DBFF-15 Images
